Bifacial

LR8-66HVD 620~640M - Anti-Glare Pro

640
W
23.69
%
HPBC 2.0
Monofacial

LR7-54HVB 445~465M - Anti-Glare Pro

465
W
22.78
%
HPBC 2.0
Bifacial

LR7-60HVD 525~550M - Transparent Design

550
W
24.6
%
HPBC 2.0
Bifacial

LR7-54HVD 475~500M - Transparent Design

500
W
24.5
%
HPBC 2.0
Bifacial

LR8-66HVD 640~665M

665
W
24.62
%
HPBC 2.0
Monofacial

LR7-60HVH 535~560M

560
W
24.8
%
HPBC 2.0
Monofacial

LR7-54HVHF 475~505M - Anti-Dust

505
W
24.7
%
HPBC 2.0
Monofacial

LR7-72HVHF 640~670M - Anti-Dust

670
W
24.8
%
HPBC 2.0
Monofacial

LR7-72HVH 640~670M - Anti-Glare

670
W
24.8
%
HPBC 2.0
Monofacial

LR7-72HVH 635~650M

650
W
24.1
%
HPBC 2.0
Monofacial

LR7-72HVH 655~670M

670
W
24.8
%
HPBC 2.0
Bifacial

LR7-72HVD 650~660M

660
W
24.4
%
HPBC 2.0
Monofacial

LR7-60HVHL 535~560M - Light Design

560
W
24.8
%
HPBC 2.0
Bifacial

LR7-72HVD 635~645M

645
W
23.9
%
HPBC 2.0
Monofacial

LR7-54HVH 480~500M - Anti-Glare

500
W
24.5
%
HPBC 2.0
Monofacial

LR7-54HVH 495~505M

505
W
24.7
%
HPBC 2.0
Bifacial

LR7-54HVD (Dual Glass) 475~495M

495
W
24.3
%
HPBC 2.0
Monofacial

LR7-54HVH 480~500M

500
W
24.5
%
HPBC 2.0
Bifacial

LR7-54HJBB 490~505M

505
W
24.7
%
HPBC 2.0
Monofacial

LR7-54HVB 475~495M

495
W
24.3
%
HPBC 2.0
Bifacial

LR7-54HVBB 470~485M

485
W
23.8
%
HPBC 2.0
Monofacial

LR7-54HVH 475~490M

490
W
24
%
HPBC 2.0
Bifacial

LR7-54HJD 495~510M

510
W
25
%
HPBC 2.0

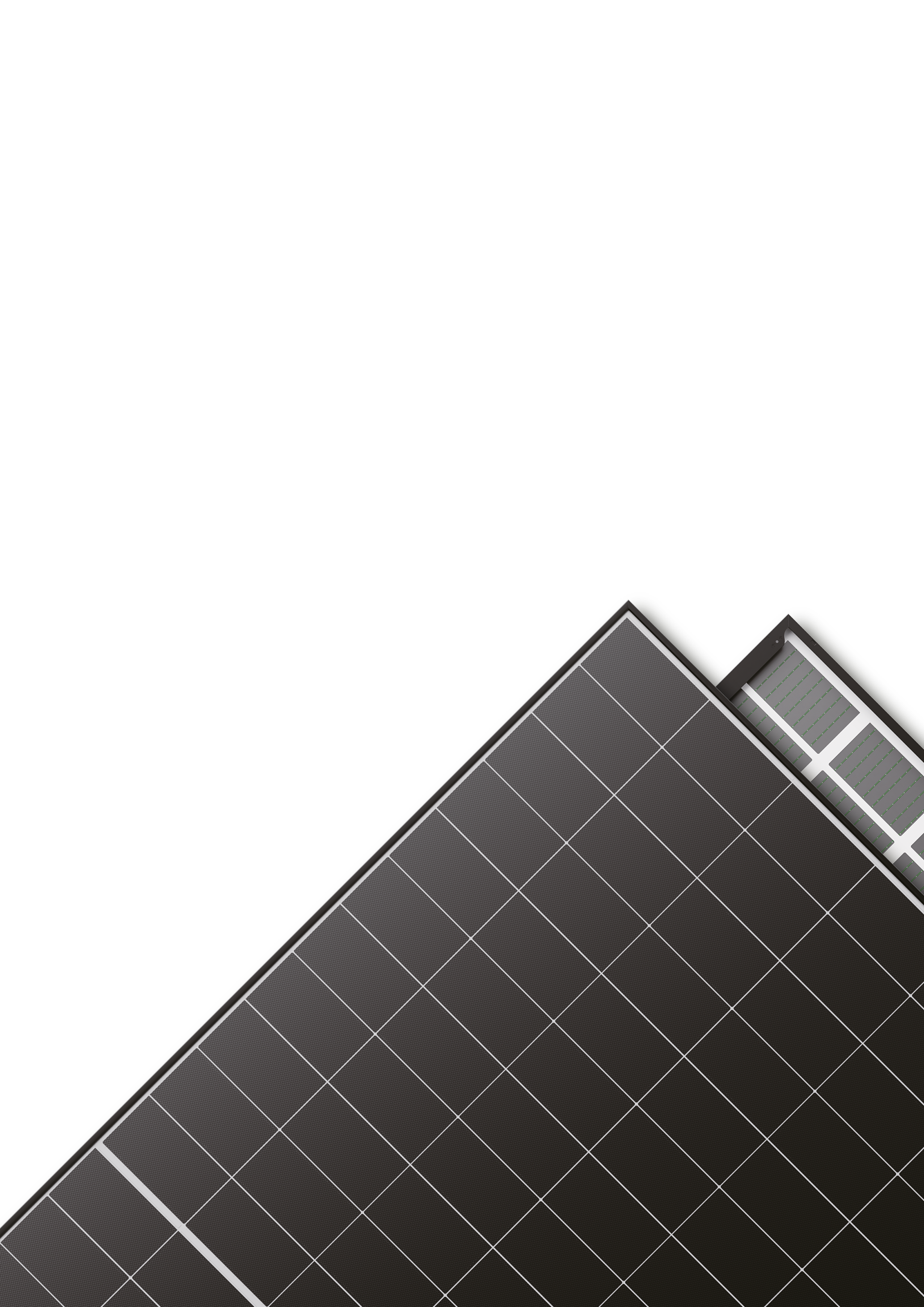

A beautiful background placeholder image
LR8-66HVD
620~640
(
W/m2
)
Leader in Airport Anti-Glare Modules, Guardian of Clear Flight Vision

EASA/FAA compliant, multi-country aviation project validated

Aviation Standards:

Airport anti-glare glass + no gridline design

Ultimate Anti-Glare:

Class 12 gale resistance, overheat & fire-proof

Safety Guard

A+ anti-shading, 70% power loss cut

High-Efficiency
A beautiful background solar panel image
LR8-66HVD
620~640
  • Aviation Standards: EASA/FAA compliant, multi-country aviation project validated
  • Ultimate Anti-Glare: Airport anti-glare glass + no gridline design
  • Safety Guard: Class 12 gale resistance, overheat & fire-proof
  • High-Efficiency: A+ anti-shading, 70% power loss cut
First Choice For High-End Residential
30
10-year Warranty for
Extra Linear Power Output
15
10-year Warranty for
Materials and Processing
Complete System and
Product Certifications
IEC61215, IEC 61730
ISO9001: Quality Management System
ISO14001: Environment Management System
ISO45001: Occupational Health and Safety Management System
IEC62941: Quality System for PV Module Manufacturing
A beautiful background solar panel image
LR8-66HVD
620~640
Leader in Airport Anti-Glare Modules, Guardian of Clear Flight Vision
Aviation Standards:
EASA/FAA compliant, multi-country aviation project validated
Ultimate Anti-Glare:
Airport anti-glare glass + no gridline design
Safety Guard
Class 12 gale resistance, overheat & fire-proof
High-Efficiency
A+ anti-shading, 70% power loss cut
30
10-year Warranty for
Extra Linear Power Output
15
10-year Warranty for
Materials and Processing
Complete System and Product Certifications
IEC61215, IEC 61730
ISO9001: Quality Management System
ISO14001: Environment Management System
ISO45001: Occupational Health and Safety Management System
IEC62941: Quality System for PV Module Manufacturing
Complete System and Product Certifications
IEC61215, IEC 61730
ISO9001: Quality Management System
ISO14001: Environment Management System
ISO45001: Occupational Health and Safety Management System
IEC62941: Quality System for PV Module Manufacturing
Define Roof Define Life
LR8-66HVD
23.69
%
Max Module
Efficiency
0~3%
POWER
TOLERANCE
1
%
FIRST YEAR
POWER DEGRADATION
0.35
%
YEAR 2-30
POWER DEGRADATION
BC-CELL
LOWER OPERATING
TEMPERATURE
Additional Value
30
-Year Power Warranty
Mechanical Parameters
Cell Orientation
132 (6×22)
Junction Box
IP68
Output Cable
4mm2, +400, -200mm/±12 00mm
length can be customized
Glass
Dual glass,2.0+2.0mm Anti-glare semi-tempered glass
Frame
Black anodized aluminum alloy frame
Weight
32.5
Dimension
2382×1134×30mm
Packaging
36pcs per pallet / 144pcs per 20’GP / 720pcs per 40’HC
Tolerance:
Length: ±2mm
Width: ±2mm
Electrical Characteristics
STC : AM1.5 1000W/m2 25℃
NOCT : AM1.5 800W/m2 20℃ 1m/s
Test uncertainty for Pmax ±3%
Module Type
Testing Condition
Maximum Power (Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
LR8-66HVD-620M
STC
620
49.12
16.06
40.38
15.36
22.95
LR8-66HVD-625M
STC
625
49.22
16.14
40.48
15.44
23.14
LR8-66HVD-630M
STC
630
49.32
16.22
40.58
15.53
23.32
LR8-66HVD-635M
STC
635
49.42
16.30
40.68
15.61
23.51
LR8-66HVD-640M
STC
640
49.52
16.38
40.78
15.69
23.69
Electrical characteristics with different rear side power gain
Operating Parameters
Operational Temperature
-40℃ ~ +85℃
Power Output Tolerance
0 ~ 3%
Maximum System Voltage
DC1500V (IEC)
Maximum Series Fuse Rating
35A
Nominal Operating Cell Temperature
45±2℃
Protection Class
Class II
Fire Rating
IEC Class C
Mechanical Loading
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC)
Temperature Coefficient of Isc
+0.050%/℃
Temperature Coefficient of Voc
-0.260%/°C
Temperature Coefficient of Pmax
-0.200%/°C
Specifications included in this datasheet are subject to change without notice. LONGi reserves the right of final interpretation.
