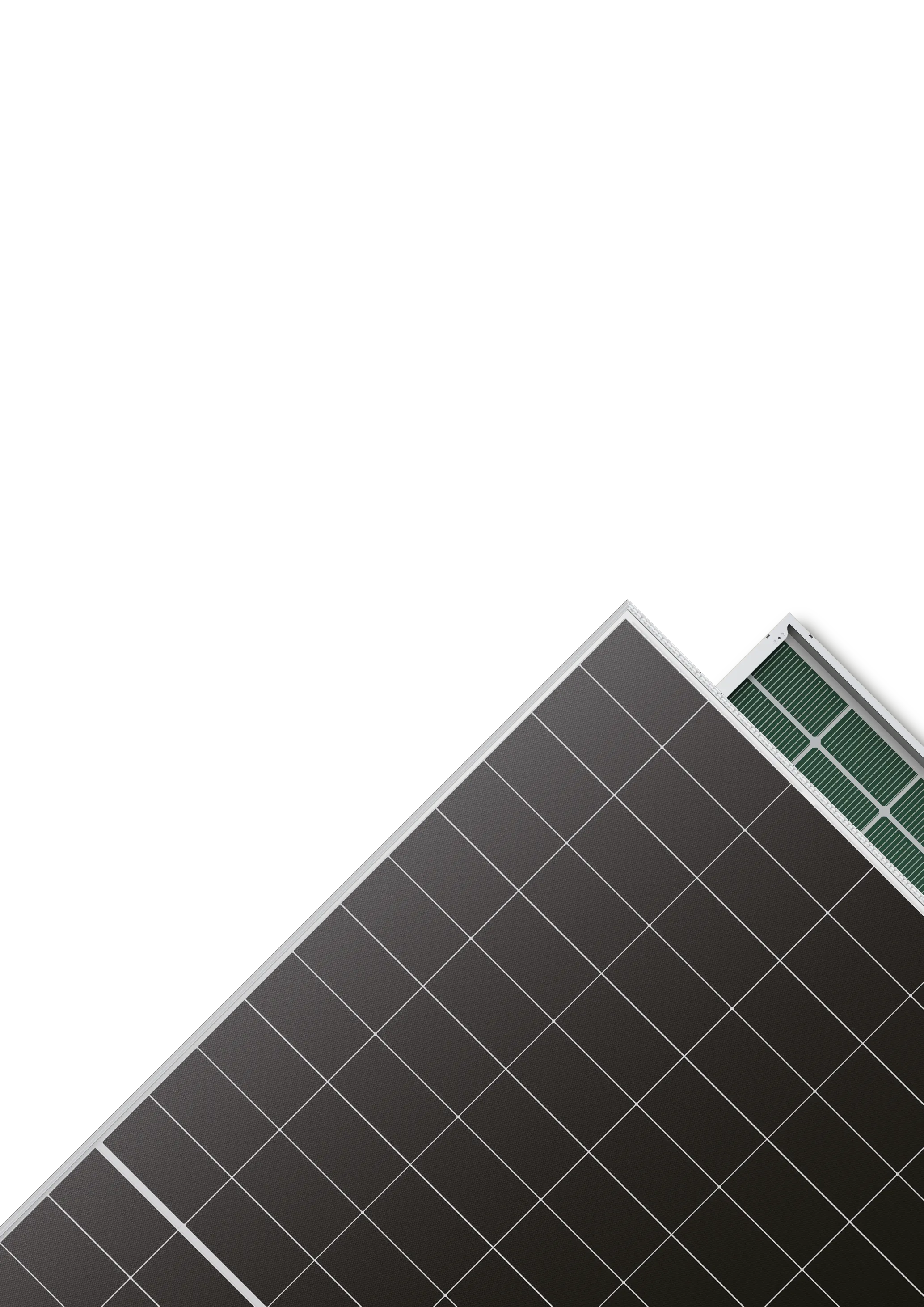

LR7-72HVD
640~665M
No items found.
LR7-72HVD
640~665M
- Suitable for glare-sensitive scenarios such as airports, highways, and residential households
- Use high-transparency and low-reflection glass to enhance the anti-glare effect
- Peak efficiency with top power generation performance
- TaiRay wafer & BC technology enhances high product reliability
10-year Warranty for
Extra Linear Power Output
Extra Linear Power Output
10-year Warranty for
Materials and Processing
Materials and Processing
Define Roof Define Life
LR7-72HVD
Additional Value
30
-Year Power Warranty
Mechanical Parameters

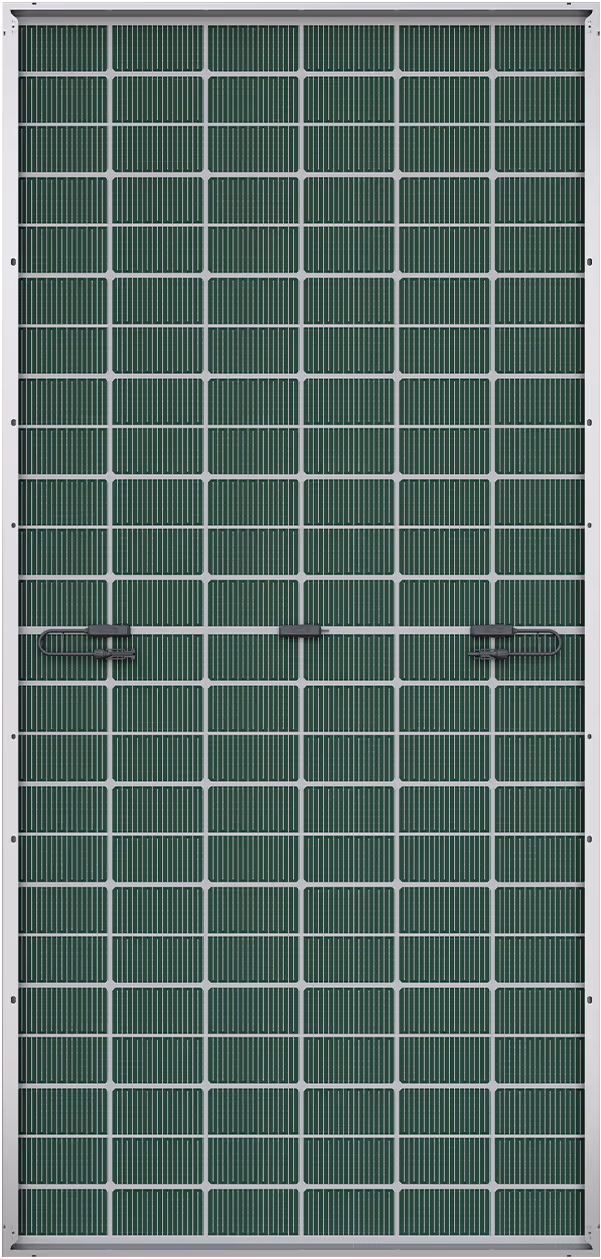

Cell Orientation
144 (6×24)
Junction Box
IP68
Output Cable
4mm2, +400, -200mm/±12 00mm
length can be customized
length can be customized
Glass
Dual glass, 2.0+2.0mm Anti-glare semi-tempered glass
Frame
Anodized aluminum alloy frame
Weight
32.5
Dimension
2382×1134×30mm
Packaging
36 pcs per pallet / 144 pcs per 20’GP / 720 pcs per 40’HC
Tolerance:
Length: ±2mm
Width: ±2mm
Electrical Characteristics
STC : AM1.5 1000W/m2 25℃
NOCT : AM1.5 800W/m2 20℃ 1m/s
Test uncertainty for Pmax ±3%
Module Type
Testing Condition
Maximum Power (Pmax/W)
Open Circuit Voltage (Voc/V)
Short Circuit Current (Isc/A)
Voltage at Maximum Power (Vmp/V)
Current at Maximum Power (Imp/A)
Module Efficiency(%)
Electrical characteristics with different rear side power gain
Operating Parameters
Operational Temperature
-40℃ ~ +85℃
Power Output Tolerance
0 ~ 3%
Maximum System Voltage
DC1500V (IEC)
Maximum Series Fuse Rating
30A
Nominal Operating Cell Temperature
45±2℃
Protection Class
Class II
Fire Rating
IEC Class C
Mechanical Loading
Front Side Maximum Static Loading
5400Pa
Rear Side Maximum Static Loading
2400Pa
Hailstone Test
25mm Hailstone at the speed of 23m/s
Temperature Ratings (STC)
Temperature Coefficient of Isc
+0.050%/℃
Temperature Coefficient of Voc
-0.260%/°C
Temperature Coefficient of Pmax
-0.200%/°C
Specifications included in this datasheet are subject to change without notice. LONGi reserves the right of final interpretation.
